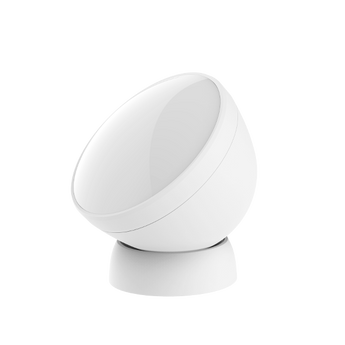

EZVIZ T1C PIR Motion Sensor (Zigbee, Needs EZVIZ A3 Gateway)
Pickup available at Elechid
Usually ready in 24 hours
The T1C tells your phone when someone moves in a room. It is a Zigbee 3.0 sensor, so it only works through an EZVIZ Home Gateway A3, sold separately, and the EZVIZ app.
Key features
- Needs the EZVIZ A3 gateway: The sensor connects by Zigbee 3.0 to an EZVIZ Home Gateway A3, which is not included; it can't connect to Wi-Fi or your phone on its own.
- Adjustable angle and pet shield: The magnetic base lets you turn the sensor to aim it on a wall or ceiling. The included pet shield reduces alerts from pets when fitted at least 50 cm above them.
- Links with EZVIZ cameras: Through the gateway, a linked EZVIZ camera can record a 5-second clip when motion is detected, if it has a memory card or CloudPlay.
Specifications
| Detection type | Passive infrared (PIR) |
|---|---|
| Detection range / angle | Up to 7 m; 90° horizontal, 90° vertical |
| Protocol / hub | Zigbee 3.0; requires EZVIZ Home Gateway A3 (sold separately) |
| Communication distance | Under 200 m (open-area test) |
| Battery | CR2450 coin cell; up to 1 year (high-performance mode) or 2 years (energy-saving mode) |
| Installation | Adhesive with magnetic base; wall or ceiling; 1.8–2.5 m recommended on walls |
| Alerts | Low-battery reminder, anti-tamper alarm |
| Dimensions | Body Φ43.5 × 32 mm; base Φ29 × 9.5 mm |
| Operating conditions | -10 °C to 55 °C, humidity up to 95% (non-condensing) |
| App | EZVIZ app |
In the box: T1C PIR sensor, pet shield, double-sided tape, regulatory information, quick start guide
Warranty and delivery
This is Hong Kong licensed stock, covered by the local distributor's warranty; the period is shown on the warranty card in the box. Brand new. Kwun Tong collection is by appointment; confirm availability and a collection time before travelling. No demonstrations or product trials are provided.
Delivery by SF Express, freight collect. Free self-collection at our Kwun Tong shop (11:00–19:00). For other arrangements, please WhatsApp us.
FAQ
Can I use it without a gateway?
No. The T1C connects by Zigbee 3.0 and needs an EZVIZ Home Gateway A3 (sold separately) to work with the EZVIZ app and cameras.
Related buying guides
- EZVIZ T2C Door/Window Open-Close Sensor (Zigbee, Needs EZVIZ A3 Gateway)
- EZVIZ T10C Water Leak Sensor (Zigbee, Needs EZVIZ A3 Gateway)
- EZVIZ T3C Smart Button (Zigbee, Needs EZVIZ A3 Gateway)
- Hong Kong CCTV buying and setup guide
- Returns and refund policy
- Shipping policy
Further reading: EZVIZ Sensors and CCTV: A3 Gateway and Compatibility.
When it arrives: first setup and checks
- Power up in an accessible position, and check package contents. Use the exact model's manufacturer instructions and app prompts to add it. Do not substitute another version's pairing or reset procedure.
- Use this model's supported Wi-Fi band, Ethernet or base-station connection. Pair near the router where appropriate, then check signal at the intended position before fixing it in place.
- Configure account/device security and viewing permissions using this model’s supported settings. Check date, time, notifications and framing.
- Enable a supported card, NVR/hub or cloud recording method. Test recording, playback and storage location before permanent mounting. Live view does not mean recording is active.
Setup reference: EZVIZ manufacturer setup and support Choose the matching model and hardware version. This self-setup checklist does not include on-site or done-for-you setup services.
