Reolink NVS4 4-Channel PoE NVR (No Hard Drive Included)
- Home systems
- Shop systems
- Multiple entrances
Pickup available at Elechid
Usually ready in 24 hours
Reolink NVS4 4-channel PoE NVR for 24/7 recording: supports cameras up to 16MP, one SATA bay for a drive up to 6TB (not included), 4K HDMI output.
Suitable uses
Suitable for a shop or small office that needs to view several compatible cameras and keep footage locally. Plan around physical ports, supported channels, drive configuration and camera compatibility; use the power arrangements specified on this page.
Key features
- Choose your own hard drive: The NVS4 ships without a pre-installed drive. It has one SATA bay for a drive of up to 6TB, and recordings can also be uploaded to an FTP server.

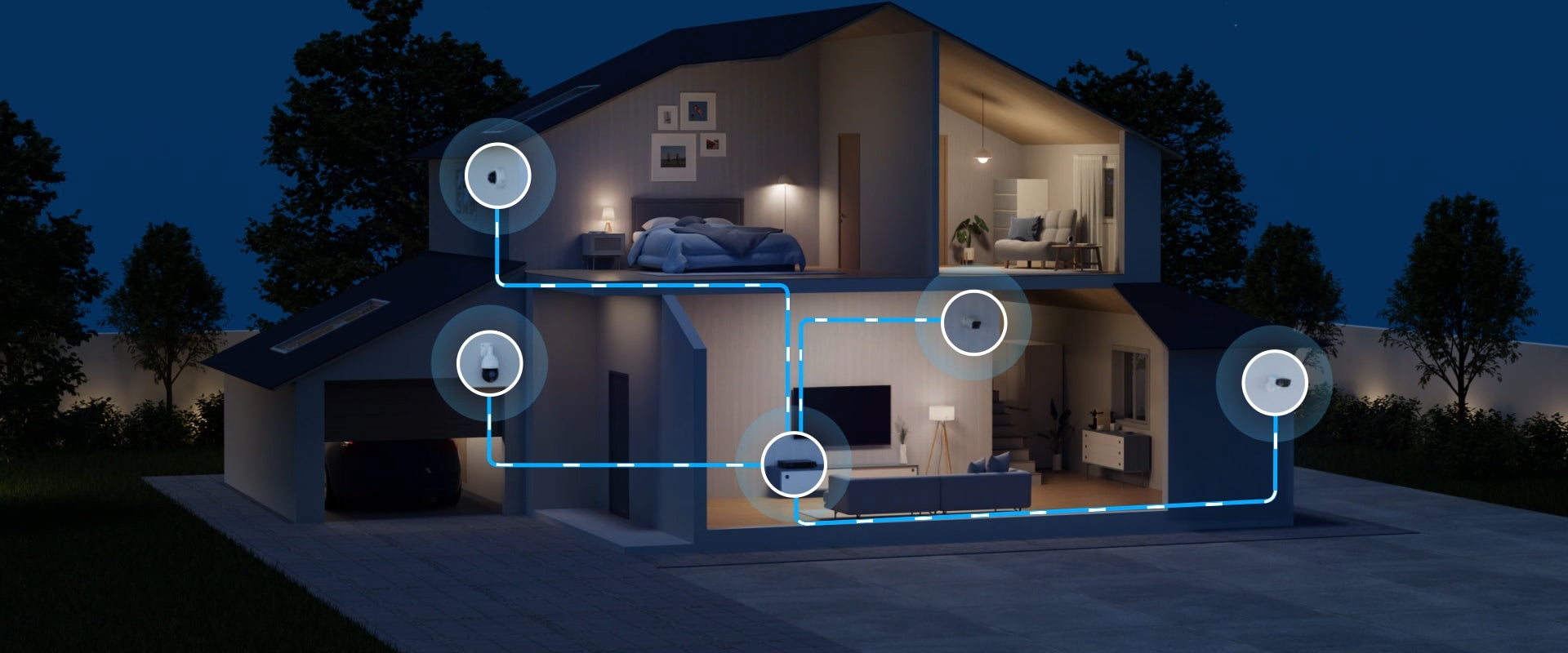

- One cable per camera: Four PoE ports (IEEE 802.3af/at, up to 25W each) carry power and data to each camera. Cameras can still be viewed locally without an internet connection.
- Watch on a TV or your phone: Connect a monitor or TV by HDMI (up to 3840 × 2160) or VGA, or use the free Reolink app and client for live view, playback and alerts.
Specifications
| Channels | Up to 4 IP cameras |
|---|---|
| Supported camera resolution | Reolink cameras up to 16MP |
| Hard drive | Not included; 1 × SATA bay, up to 6TB |
| Video output | HDMI (up to 3840 × 2160), VGA (up to 1920 × 1080) |
| Video compression | H.264 / H.265 |

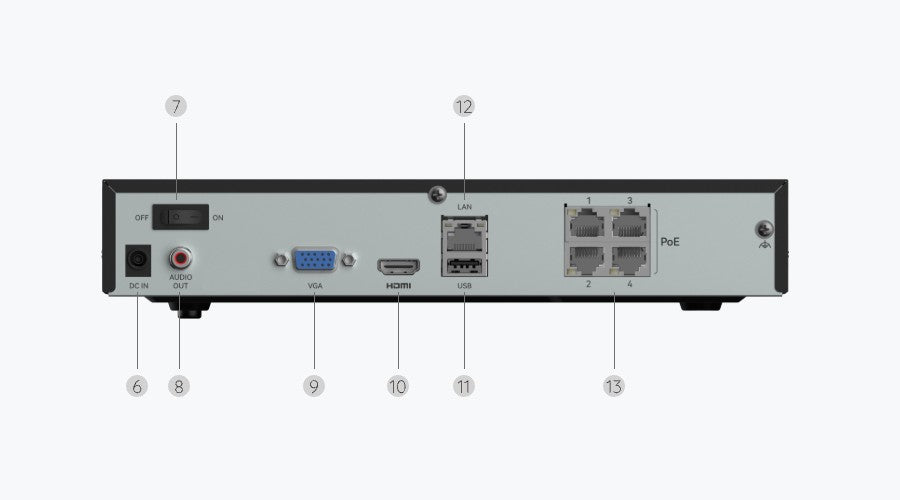

| Network ports | 4 × RJ-45 10/100 Mbps for cameras; 1 × RJ-45 10/100 Mbps LAN/WAN |
| PoE | IEEE 802.3af/at, max. 25W per port |
| Other ports | 2 × USB 2.0; 1 × RCA audio out |
| Power | DC 52V; under 10W without HDD and PoE load |
| Operating environment | -10°C to 45°C, 10–90% humidity |
| Size / weight | 255 × 49.5 × 232 mm (W × H × D); 1.4 kg |
Warranty and delivery
This is Hong Kong licensed stock, covered by the local distributor's warranty; the period is shown on the warranty card in the box. Brand new. Kwun Tong collection is by appointment; confirm availability and a collection time before travelling. No demonstrations or product trials are provided.
Delivery by SF Express, freight collect. Free self-collection at our Kwun Tong shop (11:00–19:00). For other arrangements, please WhatsApp us.
FAQ
Does it come with a hard drive?
No. This version has no hard drive. Add one SATA drive of up to 6TB before recording.
Related buying guides
- Reolink RP-PN8 8-Port PoE NVR (Up to 12 Cameras)
- Reolink RP-PN16 16-Port PoE NVR (Up to 24 Cameras)
- Reolink RP-N64 64-Channel NVR (4 Drive Bays, No PoE)
- NVRs & security camera accessories
- Hong Kong CCTV buying and setup guide
- Returns and refund policy
- Shipping policy
- Export and Back Up CCTV Footage: App, NVR and Cloud Guide
Choosing a monitoring system? Read our Hong Kong home CCTV buying guide to compare power, connectivity and recording options, or browse NVRs and camera storage hubs.
When it arrives: first setup and checks
- Check the exact recorder or hub model, hardware version, package contents and installed storage. A drive-free model needs separately purchased supported storage. Follow its instructions for power, router and any required display connections.
- Initialise the device using its manufacturer workflow, set a device password in your own account and add supported cameras. The same brand or an Ethernet socket alone does not prove compatibility.
- Check each camera's date, time and recording schedule. Make a test recording, play it back and try exporting a clip. Retention varies with camera count, bitrate, recording mode and usable storage.
Back up footage before formatting or resetting. NVR and Home Hub setup screens and supported features differ.
Setup reference: Reolink manufacturer setup and support Choose the matching model and hardware version. This self-setup checklist does not include on-site or done-for-you setup services.
