Reolink NVS4E 4-Channel PoE NVR (HDD Not Included)
- Home systems
- Shop systems
- Multiple entrances
Pickup available at Elechid
Usually ready in 24 hours
Reolink NVS4E 4-channel PoE NVR: four PoE ports, cameras up to 16MP, H.265+, heatmap and video encryption, one SATA bay for a hard drive up to 8TB (not included).
Suitable uses
Suitable for a shop or small office that needs to view several compatible cameras and keep footage locally. Plan around physical ports, supported channels, drive configuration and camera compatibility; use the power arrangements specified on this page.
Key features
- One cable per camera: Four built-in PoE ports (IEEE 802.3af/at, up to 25W each) power the cameras directly, so no separate adaptors are needed at each camera.
- Up to 16MP, stored efficiently: It handles cameras up to 16MP and uses H.265+, H.265 or H.264 to save hard drive space.

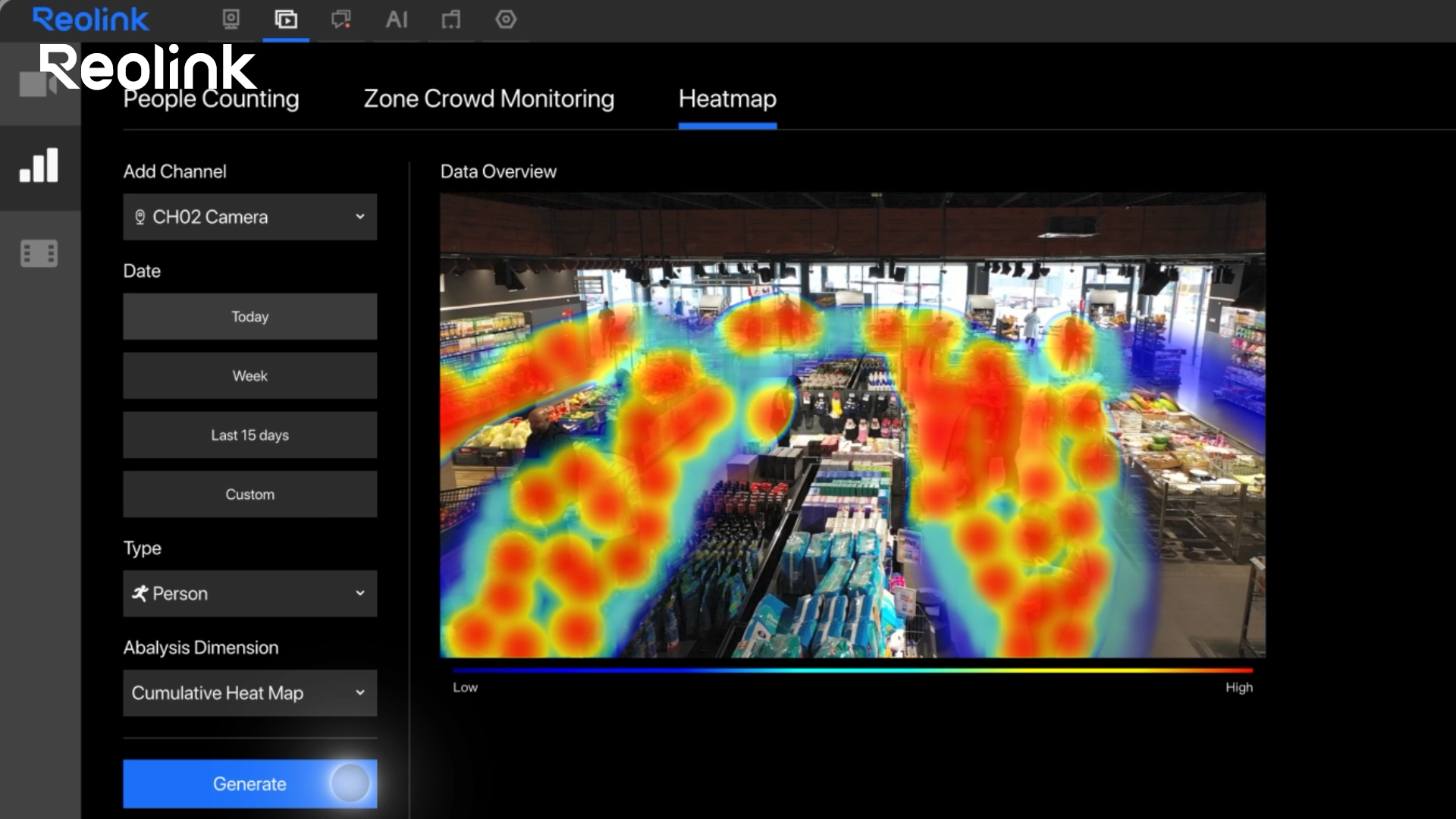

- Heatmap and encryption: The heatmap shows where people, vehicles and animals gather most, and video encryption stops the stored footage being read without permission.
Specifications

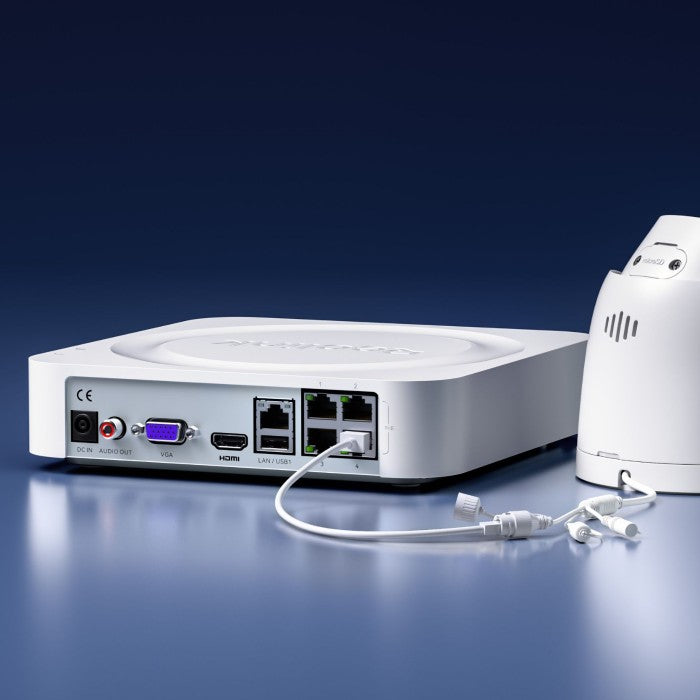

| PoE ports | 4 × RJ-45 100 Mbps PoE for IP cameras; IEEE 802.3af/at; up to 25W per port |
|---|---|
| Camera resolution | Up to 16MP |
| Video format | Intelligent H.265+ / H.265 / H.264 |

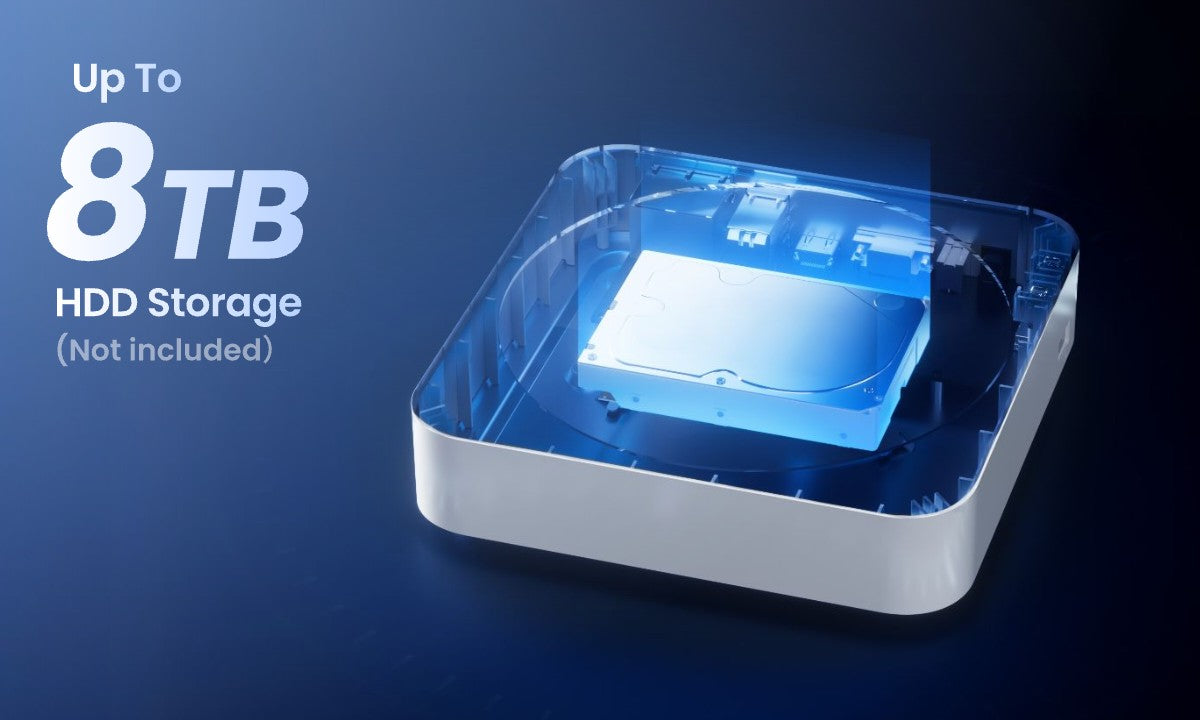

| Hard drive | 1 × SATA for a 2.5" or 3.5" HDD up to 8TB (not included; surveillance-grade, 5400 RPM or lower) |
| Video output | 1 × HDMI (up to 3840 × 2160), 1 × VGA (up to 1920 × 1080) |
| Other ports | 1 × RJ-45 100 Mbps LAN/WAN; 2 × USB 2.0; 1 × RCA audio out |
| Smart features | Motion and person/vehicle/animal detection; heatmap; video encryption |
| Playback | 1–4 channels at once (1 channel when viewing at 8MP or above) |
| Remote access | Reolink App (iOS, Android) and Client (Windows, Mac); up to 20 user accounts |
| Power / environment | DC 52V 1.25A; -10°C to 45°C, 10–90% humidity |
Warranty and delivery
This is Hong Kong licensed stock, covered by the local distributor's warranty; the period is shown on the warranty card in the box. Brand new. Kwun Tong collection is by appointment; confirm availability and a collection time before travelling. No demonstrations or product trials are provided.
Delivery by SF Express, freight collect. Free self-collection at our Kwun Tong shop (11:00–19:00). For other arrangements, please WhatsApp us.
FAQ
Does it come with a hard drive or HDMI cable?
No. Add a surveillance-grade HDD of up to 8TB. Without an HDMI cable, you can finish setup in the Reolink App.
Related buying guides
- Reolink RP-PN8 8-Port PoE NVR (Up to 12 Cameras)
- Reolink RP-PN16 16-Port PoE NVR (Up to 24 Cameras)
- Reolink RP-N64 64-Channel NVR (4 Drive Bays, No PoE)
- NVRs & security camera accessories
- Hong Kong CCTV buying and setup guide
- Returns and refund policy
- Shipping policy
- Export and Back Up CCTV Footage: App, NVR and Cloud Guide
Choosing a monitoring system? Read our Hong Kong home CCTV buying guide to compare power, connectivity and recording options, or browse NVRs and camera storage hubs.
When it arrives: first setup and checks
- Check the exact recorder or hub model, hardware version, package contents and installed storage. A drive-free model needs separately purchased supported storage. Follow its instructions for power, router and any required display connections.
- Initialise the device using its manufacturer workflow, set a device password in your own account and add supported cameras. The same brand or an Ethernet socket alone does not prove compatibility.
- Check each camera's date, time and recording schedule. Make a test recording, play it back and try exporting a clip. Retention varies with camera count, bitrate, recording mode and usable storage.
Back up footage before formatting or resetting. NVR and Home Hub setup screens and supported features differ.
Setup reference: Reolink manufacturer setup and support Choose the matching model and hardware version. This self-setup checklist does not include on-site or done-for-you setup services.
