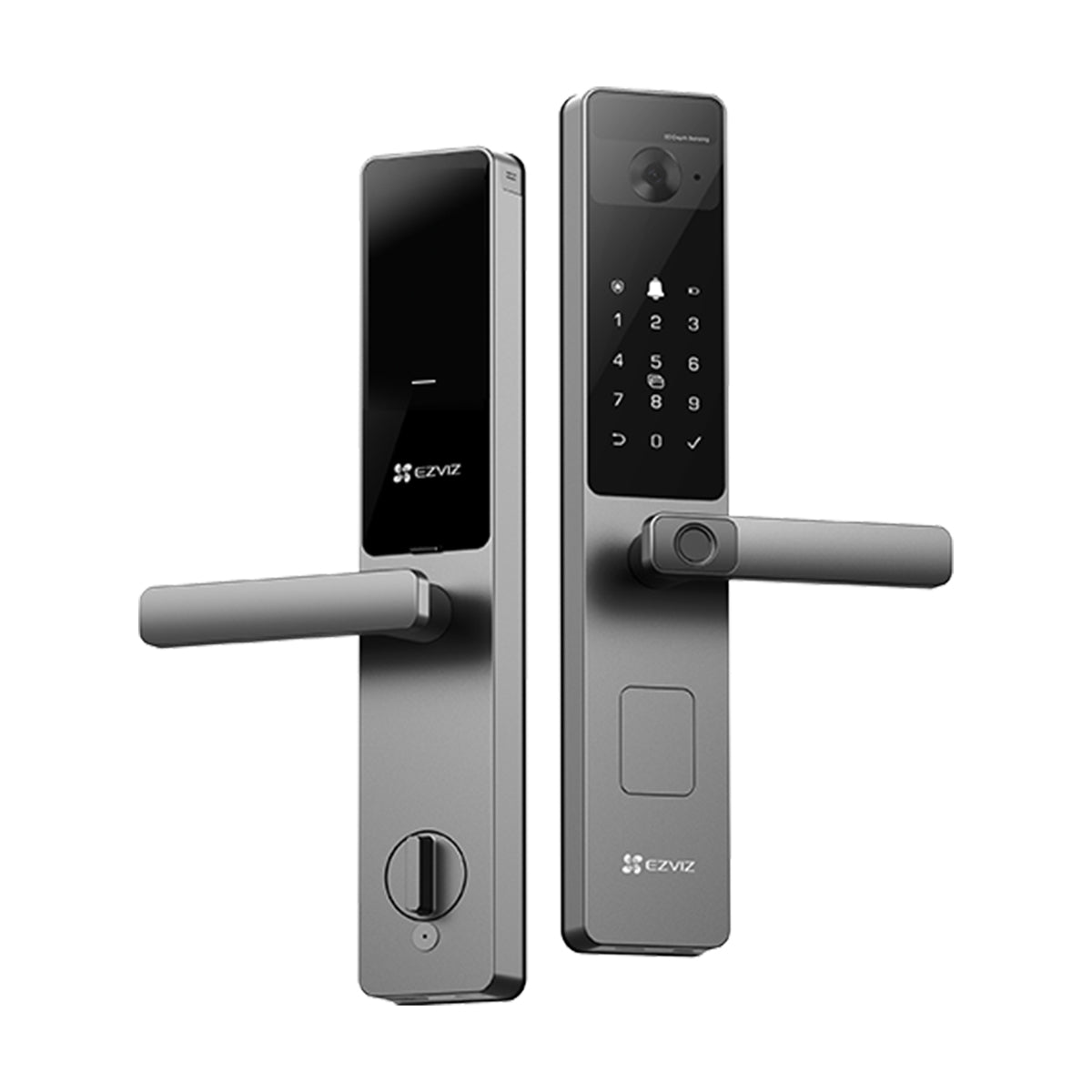

EZVIZ DL20FVS Plus 3D Face & Palm Vein Lever-Handle Smart Door Lock
Smart lock purchase information
- Official HK stock with a 2-year hardware warranty. First-year on-site service is conditional on installation by a BASCO-appointed installer; confirm order eligibility first. Warranty terms
- 100% brand new
- Kwun Tong collection by appointment; confirm your collection time after receiving the collection notice
- Check door and lock-body requirements. Provide door thickness, opening direction, frame, current lock model and photos to confirm suitability before buying.
- Confirm installation and network accessories separately. Check the package and quotation for lock body, batteries, gateway and installation; it is not a direct replacement for every existing lock.
Check Stock & Delivery on WhatsApp
Ask us to confirm stock, delivery charges and dispatch date
Pay in store
Pickup available at Elechid
Usually ready in 24 hours
Some people want face recognition but prefer a normal lever handle to a push-pull design. The DL20FVS Plus keeps the familiar lever: the lock recognises your face or palm, you press the handle and walk in. It also takes fingerprint, passcode, Bluetooth key, temporary codes, remote unlocking and a mechanical key. A wide-angle door camera feeds a 4-inch indoor screen and the EZVIZ app. It uses the 6068 lock body and a 5000 mAh rechargeable battery with USB-C emergency power, and it needs professional fitting.
Key features
Familiar lever handle with AI recognition
Once the lock recognises you, you open the door with the lever in the usual way, which suits older family members used to handles. The outdoor handle also carries a fingerprint reader. EZVIZ describes the door as locking itself once it is closed, using the 6068 automatic detection lock body.

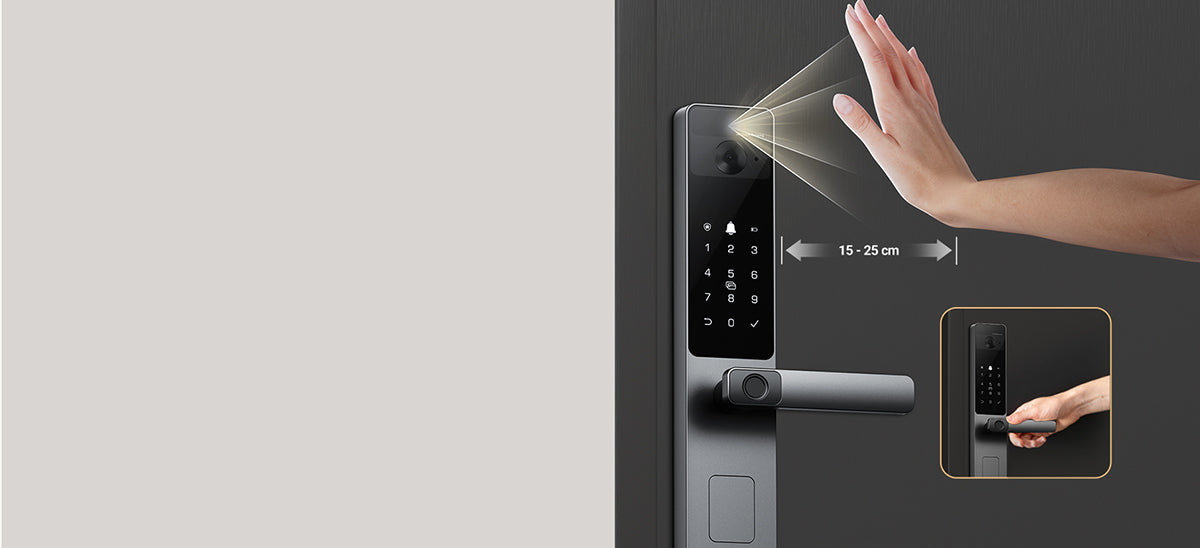

3D face and palm vein recognition
3D depth sensing recognises registered faces from within 1 m for users about 1.2 m to 2 m tall, with EZVIZ lab figures of 1 second or less. Palm vein scanning works with the palm 15–25 cm from the sensor. Recognition data is processed locally on the lock.

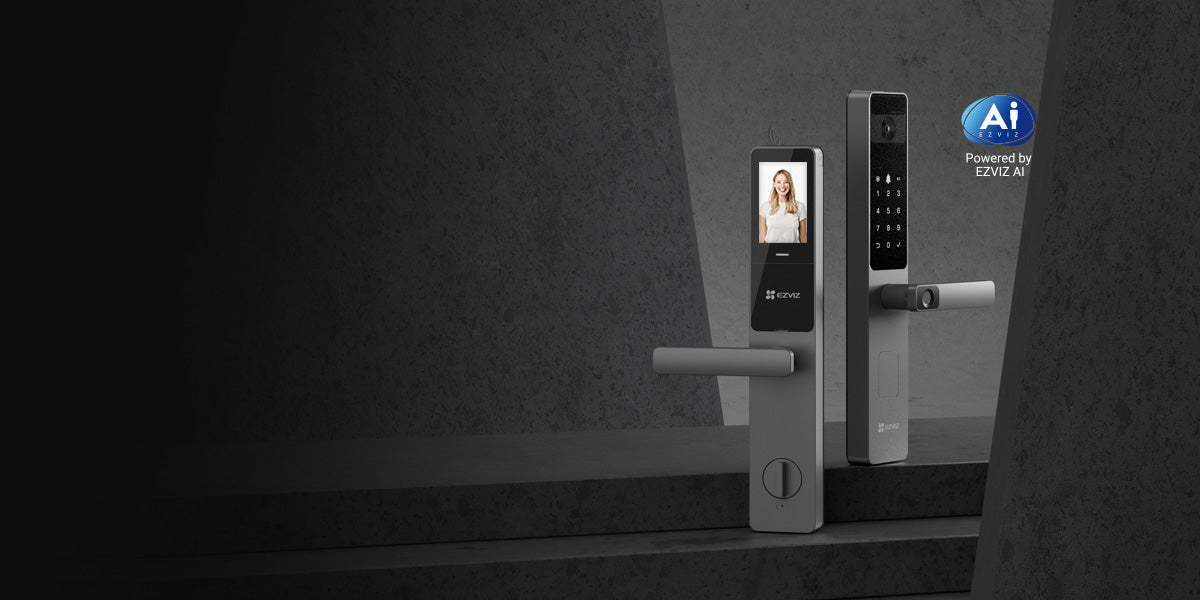

Door camera and indoor screen
The outdoor camera (1080 × 1960) shows the doorstep on a non-touch 4-inch indoor screen and in the EZVIZ app, with live view, two-way talk with voice changer, and alerts when someone lingers. A 5.8G radar sensor, IR night vision up to 2 m and 8 GB of eMMC storage support detection clips.
Rechargeable battery with USB-C backup
EZVIZ quotes 4–5 months per charge of the 5000 mAh battery in Bluetooth-only mode at 10 openings a day; using Wi-Fi shortens this. If it runs flat, a power bank on the USB-C port powers the lock so you can get in.
Specifications
| Lock body | 6068 automatic mechanical detection lock body |
|---|---|
| Supported door thickness | 40–120 mm |
| Unlocking methods | 3D face, palm vein, fingerprint, passcode, mechanical key, Bluetooth key via EZVIZ app, temporary codes, remote unlocking |
| User capacity | 50 users; 50 faces, 50 palm veins, 50 fingerprints, 50 passcodes |
| Outdoor camera | 1080 × 1960; 70° horizontal, 126° vertical, 150° diagonal (spec table) |
| Indoor screen | 4-inch IPS, 480 × 800, non-touch |
| Night vision | IR, up to 2 m |
| Storage | 8 GB eMMC; EZVIZ cloud storage with paid subscription |
| Connectivity | 2.4 GHz Wi-Fi, Bluetooth |
| Power | 5000 mAh rechargeable lithium battery; USB-C emergency power |
| Battery life | 4–5 months (Bluetooth mode, Wi-Fi off, 10 openings a day; EZVIZ figure) |
| IP rating | IP52 |

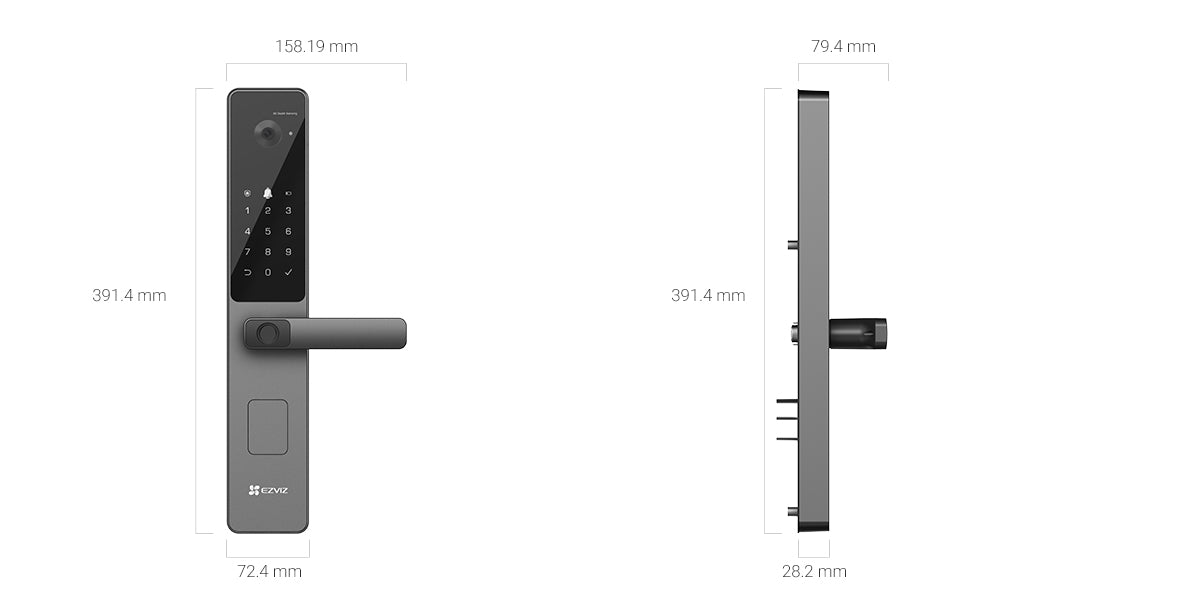

| Panel size | Front 391.4 × 72.4 × 28.2 mm; rear 391.4 × 72.4 × 30 mm |
| Material and colour | Aluminium alloy, Metallic Grey; C-grade lock cylinder |
| Operating temperature / humidity | -10 °C to 55 °C / 10% to 95% |
| App | EZVIZ app (no separate gateway listed) |
In the box: Front panel, rear panel, hole template, lock body, lock body screw bag, standard screw bag, handing screw bag, battery, battery slot cover, key bag, square rod, bumper pad, sticker, regulatory information, 2 quick start guides
Who it's for
- Homes that want face or palm unlocking but prefer a classic lever handle
- Older family members who are used to pressing a handle to open the door
- Households that want an indoor screen to see who is at the door
Not ideal for: Not for doors that can't take a 6068 lock body or fall outside 40–120 mm thick, or for anyone expecting a push-pull handle.
Warranty and delivery
Brand-new official Hong Kong stock. BASCO lists a 2-year local warranty for EZVIZ locks purchased with a valid invoice dated 8 September 2026 or later; lock batteries have a 1-year warranty. Keep your invoice and BASCO warranty label. Our Kwun Tong location is for collection by appointment only; no showroom or product demonstrations are available. Smart locks must be fitted to suit your door and lock body. Please WhatsApp us your door details before ordering; installation is arranged separately.
Delivery by SF Express, freight collect. Free collection in Kwun Tong by appointment. Wait for your collection notice and confirm the time before visiting. For other arrangements, please WhatsApp us.
FAQ
Will it fit my door?
It uses a 6068 lock body and EZVIZ lists a door thickness of 40–120 mm. Please WhatsApp us photos and measurements of your door and current lock before buying, as it needs professional fitting.
Which app do I use, and is a hub needed?
Set-up and remote functions use the EZVIZ app. The lock connects over 2.4 GHz Wi-Fi and Bluetooth, and EZVIZ doesn't list a separate gateway.
What's in the box?
Front and rear panels, hole template, lock body, screw bags, battery with slot cover, key bag, square rod, bumper pad, sticker and quick start guides.
Related products and guides
- EZVIZ DL50FVX Dual-Camera Face & Palm Vein Smart Door Lock
- EZVIZ DL50FVS Plus 3D Face & Palm Vein Smart Door Lock
- EZVIZ DL05 Lever-Handle Fingerprint Smart Door Lock
- Licensed vs parallel-import stock explained
- BASCO warranty terms
- Shipping policy
Smart-lock and IP camera integration
Basco, the Hong Kong distributor, lists H6C camera recording integration for the DL20FVS Plus. Product linkage literature also includes H6c Pro 1080p, 2K and 3K, plus H6c G1 4K, in the smart-lock integration camera range. Supported combinations can help cover the entrance and activity inside the home.
Family-level support does not establish identical behaviour for every hardware and firmware version. Before buying for door-triggered snapshots, recording or a preset viewing angle, confirm both complete model numbers, account region, app, firmware and the available linkage action. Check storage and playback separately. Managing both devices in one app does not activate the automation or allow the camera to unlock the door automatically.
Source: Basco Hong Kong DL20FVS Plus product information.
Read our smart-lock and IP camera integration checklist before choosing a combination.
