EZVIZ DL50FVX Dual-Camera Face & Palm Vein Smart Door Lock
Smart lock purchase information
- Official HK stock with a 2-year hardware warranty. First-year on-site service is conditional on installation by a BASCO-appointed installer; confirm order eligibility first. Warranty terms
- 100% brand new
- Kwun Tong collection by appointment; confirm your collection time after receiving the collection notice
- Check door and lock-body requirements. Provide door thickness, opening direction, frame, current lock model and photos to confirm suitability before buying.
- Confirm installation and network accessories separately. Check the package and quotation for lock body, batteries, gateway and installation; it is not a direct replacement for every existing lock.
Check Stock & Delivery on WhatsApp
Ask us to confirm stock, delivery charges and dispatch date
Pay in store
Pickup available at Elechid
Usually ready in 24 hours

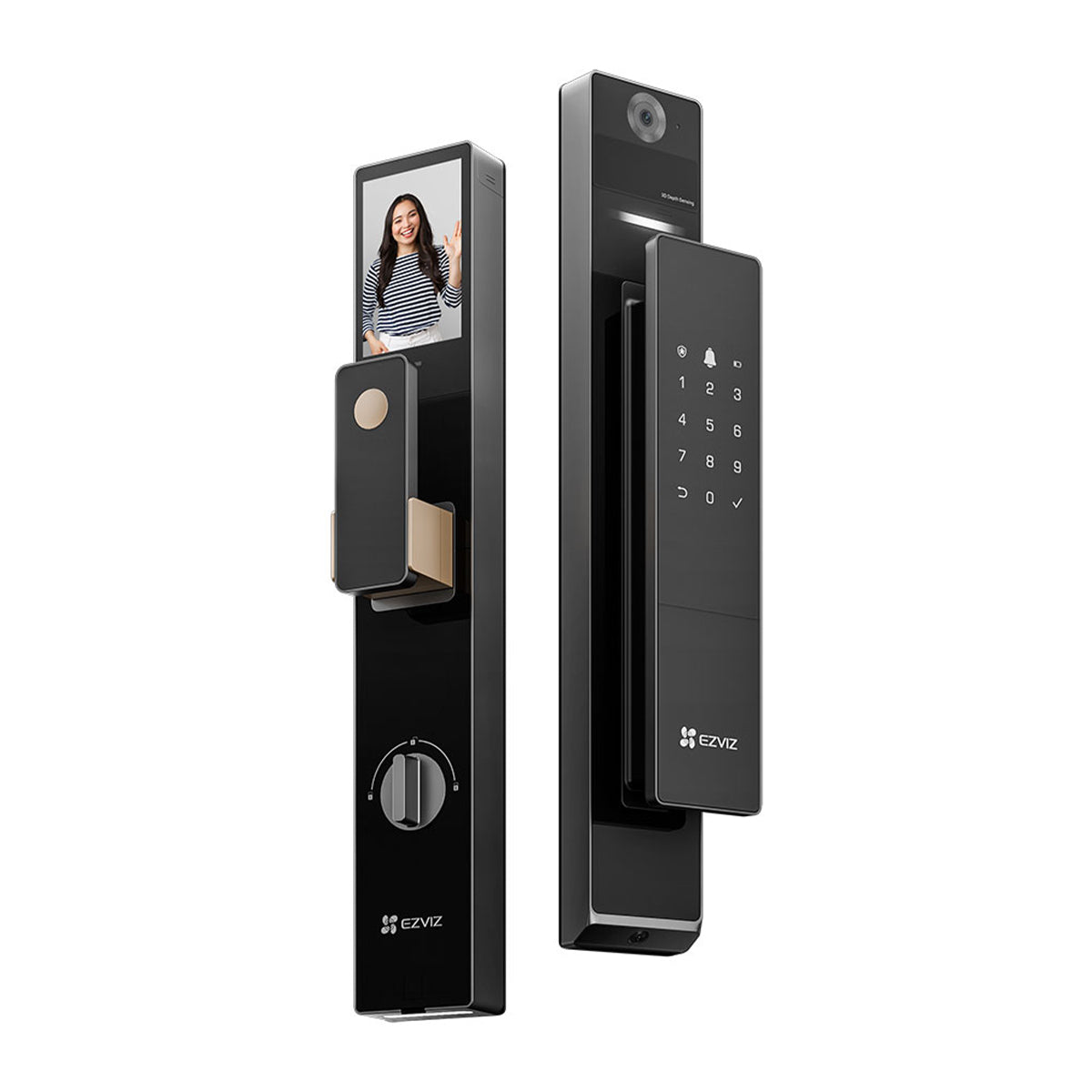

The DL50FVX suits households that want the door to open as they walk up, and want to see who is outside without opening it. It recognises registered faces with 3D depth sensing, and also takes palm vein, fingerprint, passcode, Bluetooth key, temporary codes, app unlocking and a mechanical key. Two cameras on the outdoor panel cover faces and the area near the floor, and a 4-inch indoor screen shows both views. This version uses the 6068 lock body and runs on two rechargeable lithium batteries. It needs professional fitting, so check your door before ordering.
Key features
3D face and palm vein recognition
Face recognition uses 3D depth sensing and works when you stand within 1 m, for users roughly 1.2 m to 2 m tall; EZVIZ lab figures quote unlocking in 1 second or less. Palm vein scanning reads the palm at 15–25 cm, which helps family members who find face or fingerprint unlocking awkward. Recognition data is processed and stored on the lock itself.
Two outdoor cameras and a 4-inch indoor screen
The upper camera (1504 × 1968, 162° diagonal) faces visitors, while the bottom camera (1920 × 1080, 152° diagonal) covers the lower part of the doorway, such as parcels left on the floor. The non-touch 4-inch indoor screen shows both views picture-in-picture. In the EZVIZ app you also get live view, two-way video calls and alerts when someone lingers at the door.
Dual rechargeable batteries with USB-C backup

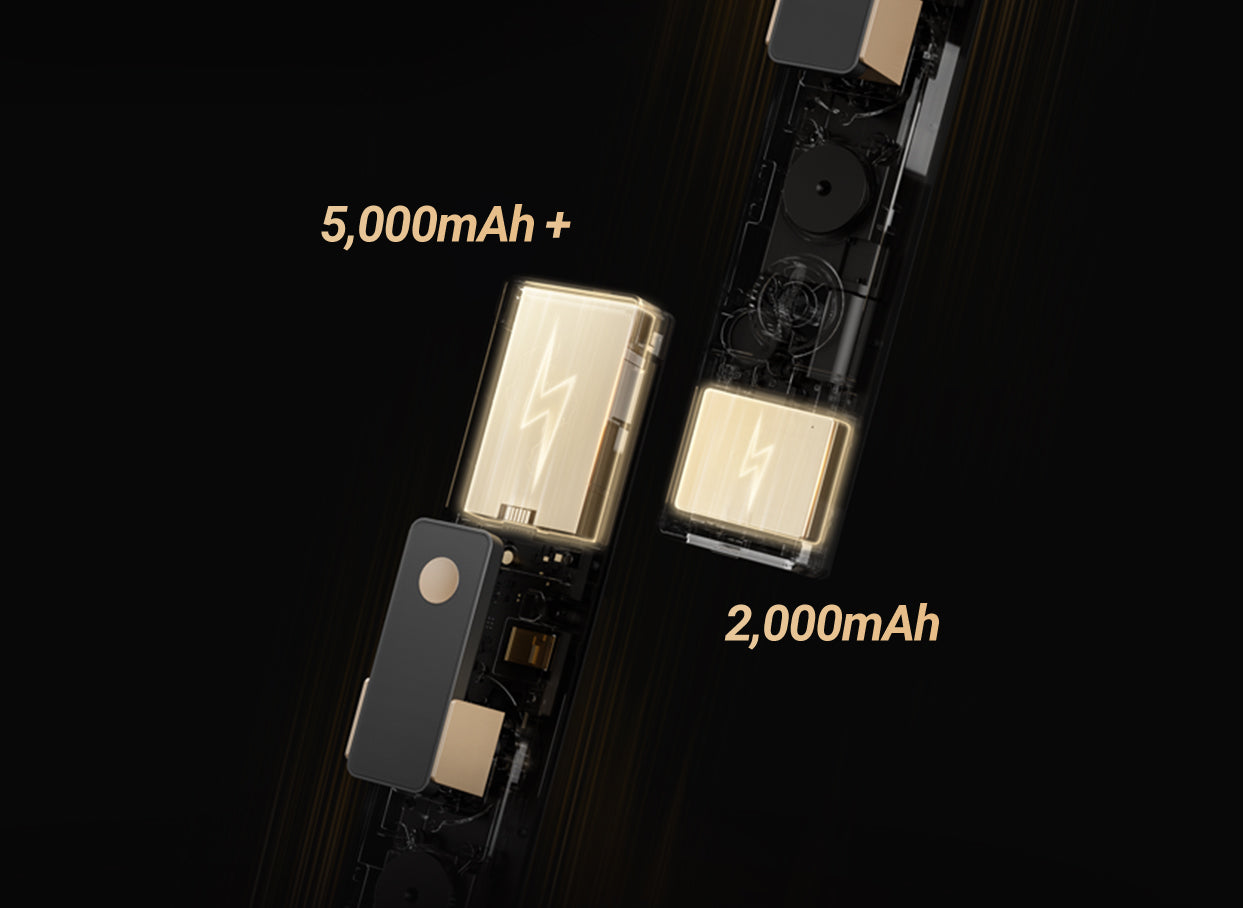

The lock runs on a 5000 mAh main battery plus a 2000 mAh backup, and switches to the backup when the main battery runs low. If both are flat, a power bank on the emergency USB-C port powers the lock so you can get in. Low-battery warnings appear on the lock and in the app.
Radar presence sensing and security alerts
A 5.8G radar sensor notices people near the door, with IR night vision up to 2 m and detection clips kept on built-in eMMC storage. The app notifies you of failed unlock attempts, tampering and low battery, and the lock sounds a siren if it is forcibly removed. Cloud recording needs a paid EZVIZ CloudPlay plan.
Specifications
| Lock body | 6068 automatic mechanical detection lock body |
|---|---|
| Supported door thickness | 40–120 mm (6068 version) |
| Unlocking methods | 3D face, palm vein, fingerprint, passcode, mechanical key, Bluetooth key (EZVIZ app), temporary codes, remote unlocking |
| User capacity | 50 users; 50 faces, 50 palm veins, 50 fingerprints, 50 passcodes |
| Outdoor cameras | Upper: 1504 × 1968, 162° diagonal; bottom: 1920 × 1080, 152° diagonal |
| Indoor screen | 4-inch IPS, 480 × 800, non-touch |
| Night vision | IR, up to 2 m |
| Storage | Built-in eMMC; EZVIZ cloud storage with paid subscription |
| Connectivity | 2.4 GHz Wi-Fi, Bluetooth |
| Power | 5000 mAh + 2000 mAh rechargeable lithium batteries; USB-C emergency power |
| Battery life | Not published |
| IP rating | IP52 |

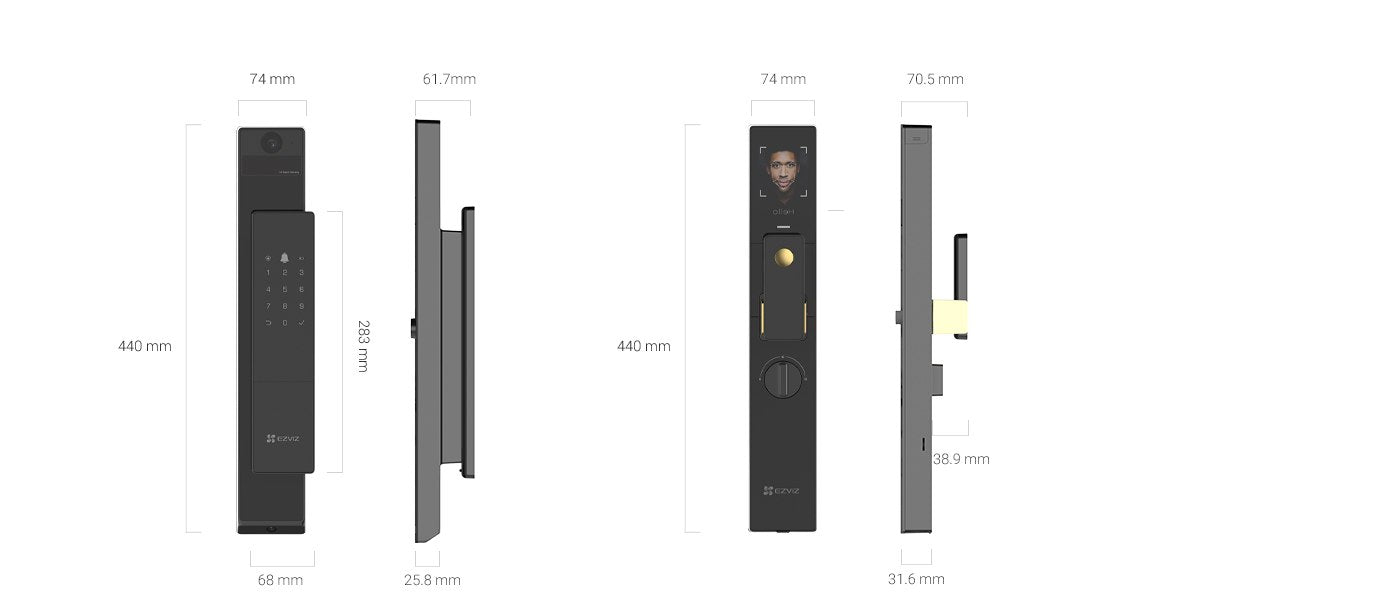

| Panel size | Front 440 × 74 × 25.8 mm; rear 440 × 74 × 31.6 mm |
| Material and colour | Aluminium alloy, Metallic Grey; C-grade lock cylinder |
| Operating temperature / humidity | -10 °C to 55 °C / 10% to 95% |
| App | EZVIZ app (no separate gateway listed) |
In the box: Front panel, rear panel, hole template, lock body, lock body screw bag, standard screw bag, lock body retainer box (6068 version), 2 batteries, key bag, square rod, bumper pad, sticker, regulatory information, 2 quick start guides
Who it's for
- Families who want hands-free entry by face or palm
- Homes that want to see visitors and parcels at the door on an indoor screen
- Users who prefer rechargeable batteries with a built-in backup cell
Not ideal for: Not for doors that can't take a 6068 lock body or are outside 40–120 mm thick, or for anyone planning a DIY fit.
Warranty and delivery
Brand-new official Hong Kong stock. BASCO lists a 2-year local warranty for EZVIZ locks purchased with a valid invoice dated 8 September 2026 or later; lock batteries have a 1-year warranty. Keep your invoice and BASCO warranty label. Our Kwun Tong location is for collection by appointment only; no showroom or product demonstrations are available. Smart locks must be fitted to suit your door and lock body. Please WhatsApp us your door details before ordering; installation is arranged separately.
Delivery by SF Express, freight collect. Free collection in Kwun Tong by appointment. Wait for your collection notice and confirm the time before visiting. For other arrangements, please WhatsApp us.
FAQ
Will it fit my door?
This version uses a 6068 lock body and EZVIZ lists a door thickness of 40–120 mm. Door size, material and your current lock body must be checked first, so please WhatsApp us photos and measurements of your door before buying. The lock needs professional fitting.
Do I need a hub or gateway?
EZVIZ doesn't list a separate gateway for this lock. It connects over 2.4 GHz Wi-Fi and Bluetooth and is set up in the EZVIZ app.
What if the batteries run out?
The lock switches to its 2000 mAh backup battery when the main battery is low. If both are flat, connect a power bank to the emergency USB-C port to power the lock and unlock it; mechanical keys are also supplied.
Related products and guides
- EZVIZ DL50FVS Plus 3D Face & Palm Vein Smart Door Lock
- EZVIZ DL20FVS Plus 3D Face & Palm Vein Lever-Handle Smart Door Lock
- EZVIZ DL05 Lever-Handle Fingerprint Smart Door Lock
- Licensed vs parallel-import stock explained
- BASCO warranty terms
- Shipping policy
Smart-lock and IP camera integration
Basco, the Hong Kong distributor, lists H6C camera recording integration for the DL50FVX. Product linkage literature also includes H6c Pro 1080p, 2K and 3K, plus H6c G1 4K, in the smart-lock integration camera range. Supported combinations can help cover the entrance and activity inside the home.
Family-level support does not establish identical behaviour for every hardware and firmware version. Before buying for door-triggered snapshots, recording or a preset viewing angle, confirm both complete model numbers, account region, app, firmware and the available linkage action. Check storage and playback separately. Managing both devices in one app does not activate the automation or allow the camera to unlock the door automatically.
Source: Basco Hong Kong DL50FVX product information.
Read our smart-lock and IP camera integration checklist before choosing a combination.
